Cariitti Premium Glass Fiber Sauna Light Set – 8 Spots

Warranty: 5

Build Price Now

Cost Calculation
Description

Cost Calculation

Choose delivery

*Delivery options

Installation. Price for installation quoted separately, please contact us for details.
Shipping via third-party transportation carrier (calculated based on order volume and destination).

Product Price $13,000.00

Options amount $0.00

Final total $13,000.00

Description

TECHNICAL SPECIFICATIONS (8 spots)

Suitable for lighting a sauna of about 20-55 sq.ft.

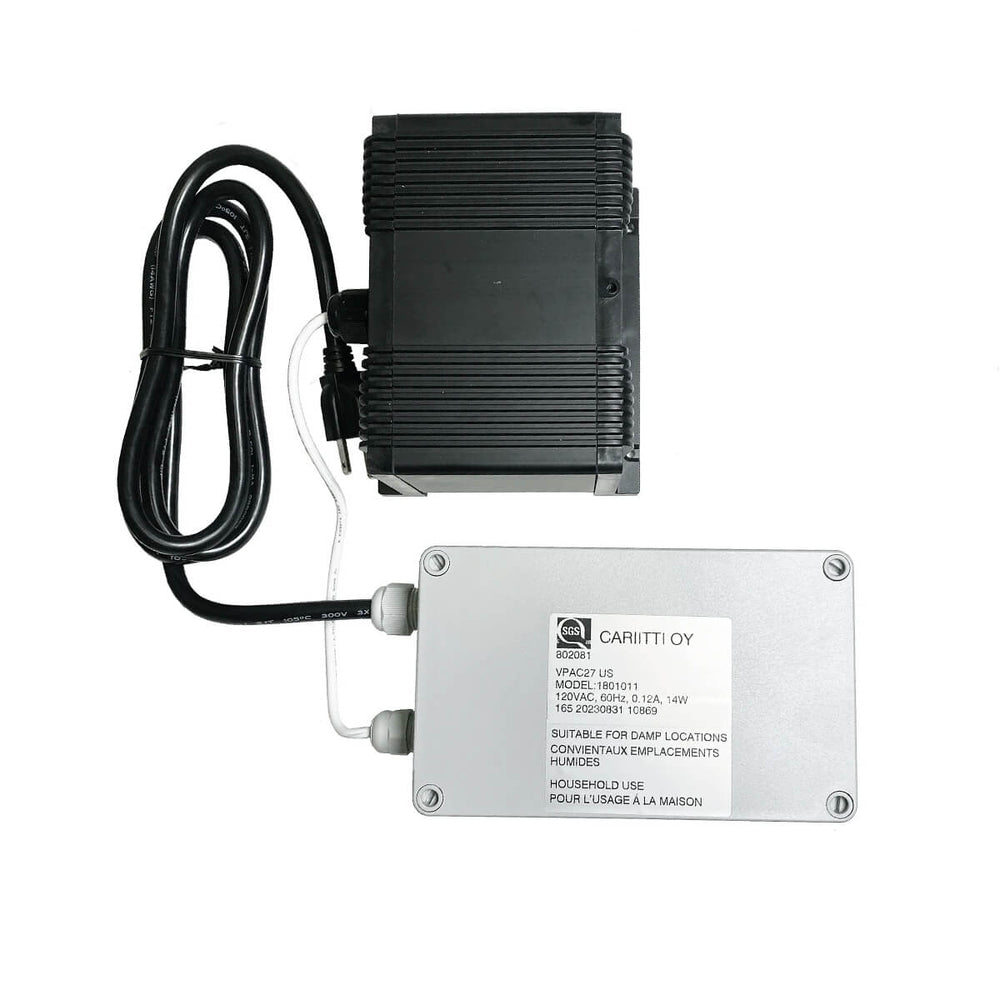

PROJECTOR SPECIFICATIONS

Type: VPAC27 -US
120VAC, 60Hz, 0.12A, 14W, Class IP55*
Equipped with a power cord
Certified: UL153 | CSA C22.2
Projector to be installed outside of the sauna or underneath the sauna bench** max 2.3 ft from the floor

LIGHTS

7 spots (for bench or ceiling)
1 spot for the heater lens (to be installed above the heater) ⌀ 3mm
Dimmable 2700K / Ra >90
Output: 1500lm, 16W

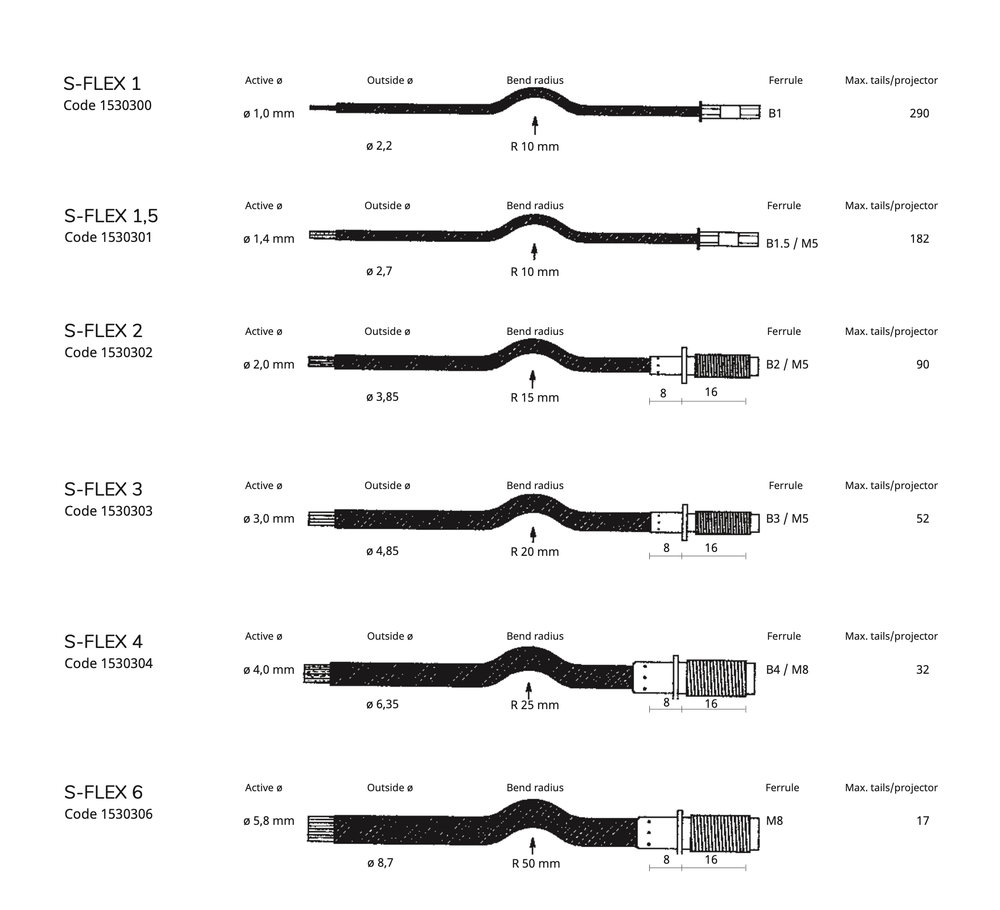

FIBERS

S-Flex 2: 2pcs x 8.2ft (⌀2mm)
3pcs x 9.8ft (⌀2mm)
2pcs x 11.5ft (⌀2mm)
(fiber ⌀2mm= 0.079”)
S-Flex 3: 1pc x 11.5 ft (⌀3mm)
Includes 7pcs locking rings and 7pcs size M5 ferrules
Harness S832

* IP55 rating means the enclosure is dust-protected and protected against water jets from any direction.

** If the electrician removes the plug and connects the projector directly to the main supply, it can be installed inside the sauna, on the wall under the benches. Since electrical outlets are not permitted inside the sauna, the projector must be wired directly to the main supply. This placement is crucial because heat rises in the sauna, so positioning the projector lower ensures it won’t be affected by the heat.
