Saunum AirIQ Wi-Fi

$1,295.00

Depth: 0.8

Width: 3.3

Height: 4.1

Description
Manuals

Description

With a Saunum AirIQ control unit, control of the Saunum Air electric sauna heater is easy and convenient. Three programmable sauna types let you heat the sauna with just a few taps on the screen. The AirIQ allows you to activate a tailored sauna profile and have your custom sauna ready at the time you specify on your mobile device. This improves your sauna experience and reduces energy consumption.

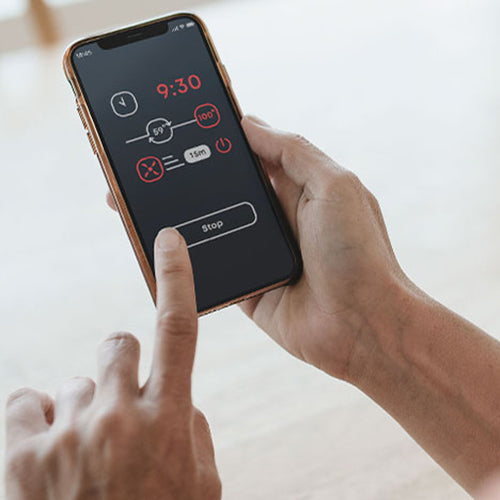

With the Saunum AirIQ Wi-Fi, you can control your sauna from anywhere, at any time. Simply pair the Saunum AirIQ app with the Saunum AirIQ Wi-Fi that is connected to a Wi-Fi network. Sauna notifications are displayed on the user's mobile device. The AirIQ is UL listed for safety.

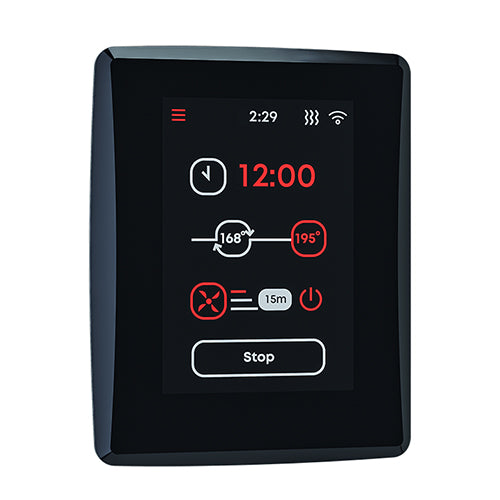

Display Panel
Model	AirIQ Wi-Fi
Certification/Global Safety Rating	UL (Underwriters Laboratories)
Type	Digital, Soft-Touch
Response	Tactile with Haptic Feedback Technology
Language Selection	16-Languages
Wi-Fi Capability	Wi-Fi, App-Based Updates & Operation
Notifications	Sauna is Ready, Heater Status, Open Door, and Overheating Protection
Safety Features	Admin, Screen Lock, Door Sensor, and Overheat Protection
Color	Nordic Black
Heat Equalizing Control	3-Speed Adjustability
Depth	.8" (20.32 mm)
Width	3.3" (83.82 mm)
Height	4.1" (104.14 mm)
IP Rating	IP20
Minimum Temperature Setting	104-Degrees Fahrenheit (40-Celcius)
Maximum Temperature Setting	194-Degrees Fahrenheit (90-Celcius)
Duration Timer	1 - 6 Hours
Display Panel Cable (included with heater)	4-Conductor Cable (150-Degree C), 20AWG, 15' (475.2 cm)
Door Sensor & Cable Assembly (included with heater)	2-Conductor Cable (150-Degree C), 20AWG, 9.83' (299.62 cm)
Door Sensor Probe	1" Long and .24" Diameter (25 x 6 mm)
Operating Temperature Range	-4 - 145-Degrees Fahrenheit (-20 - 62 Celsius)
Programmability	Weekly Scheduling with Three Programmable Sessions
Temperature Settings	Fahrenheit or Celsius
Region Settings	North American and European Versions
Room Temperature Sensor (included with heater)	Pre-Mounted with Integrated Cable (150- Degree C), 9.5' (289.56 cm)


Power Unit
Certification/Global Safety Rating	UL (Underwriters Laboratories)
Operating Voltage	240VAC 1 Phase
IP Rating	IP64
Depth	2.36" (59.94 mm)
Width	6.5" (165.5 mm)
Length	10.11" (256.79 mm)
Operating Temperature	-4 - 113-Degrees Fahrenheit (-20 - 45-Celcius)

Easily control the Saunum heater and climate device with just a few taps on the screen.

Temperature selection ranges from 104 °F – 194°F (40°C - 90°C).
Allows you to set the operating time of the heater: up to 1 hour in a private sauna, up to 6 hours in a public sauna.
Allows you to select up to 3 Preset Sauna settings: (selectable temperature, time, climate device speed)
Classic Nordic Steam Saunafor temperatures from 140°F - 194°F (60°C - 90°C). Valve of the Climate Device open to 25% with speed level 1.
Humid Steam-rich Saunafor temperatures from 113°F - 140°F (45°C - 60°C). Valve of the Climate Device open to 100% with speed level 2 or 3.
Mild, Relaxing Saunafor temperatures from 104 °F – 131 °F (40°C - 55°C). Valve of the Climate Device open to 25% with speed level 1.
AirIQ WiFi allows for sauna session scheduling for a specific day, time, and sauna type for the week.
Built-in Wi-Fi interface for Saunum mobile app available on AppStore and Google Play.
ModBus integration for smart home connection
Notifications will be conveniently displayed directly onto your mobile device via the Saunum mobile app. Sauna is Ready Heating Status Door is OpenOverheating protection applied.
Multi-Language menu includes English, German, Estonian, Finnish, Russian, Swedish, and Slovenian.
Outside Sauna room installation
Screen lock
Child Safety Lock
Temperature Sensor
Door Sensor
